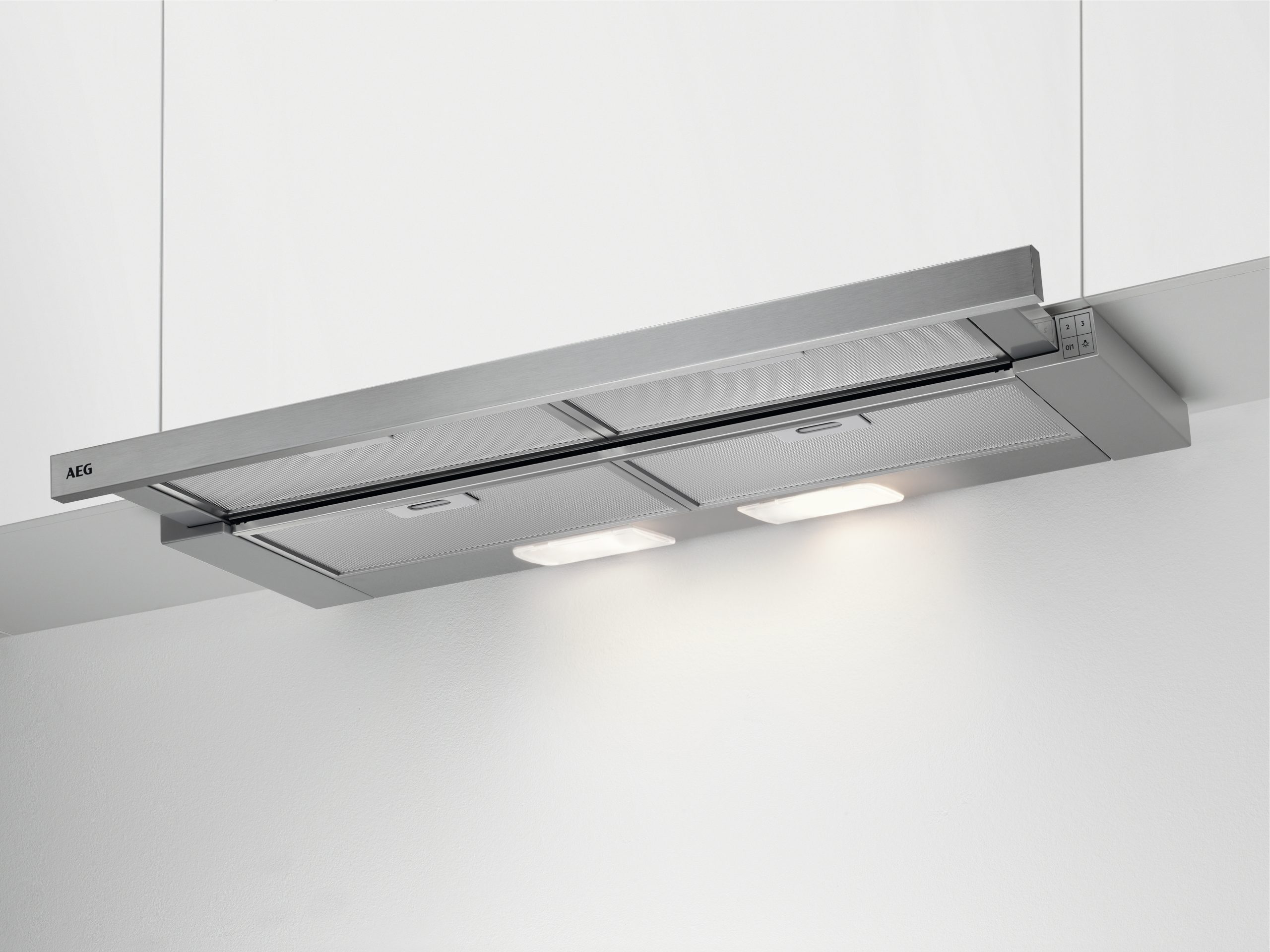

AEG DPB3932S 90cm Silver Pull Out Hood

• Control type: Push buttons with 3; Micro switch speeds.
• Aluminium grease filters: The metal filter captures grease, reducing odours, purifying the air, and enhancing performance. It's dishwasher-safe and never needs replacing.
• Extraction mode: A ducting kit is attached to the hood to extract cooking vapours externally, keeping the kitchen free from odours.
• Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.
• Grease filter type and number: Aluminium mesh, 4

• Number of Speed Settings: 3; Micro switch
• Ducted Extraction Rate - Min/Max/Intensive (m³/h): 170/410/-
• Ducted Noise Level - Min/Max/Intensive (dB): 48/69/-
• Light Temperature (k): 3000
• Number of Lights: 2
• Hob2Hood Connection: No
• Min Recirculated Extraction Rate (m³/h): 130
• Max Recirculated Extraction Rate (m³/h): 225
• Min Recirculated Noise Level (dB): 62
• Max Recirculated Noise Level (dB): 72
• Number of Grease Filters: 4
• Grease Filter Type: Aluminium mesh

• Minimum Distance from Electric Hob (cm): 42
• Minimum Distance from Gas Hob (cm): 65
• Size (cm): 90
• Extraction Type - Recirculation: Yes
• Extraction Type - Ducted: Yes
• Net Weight (Kg): 9.1
• Gross Weight (Kg): 10.5
• Dimensions (mm) (HxWxD): 179x898x284
• Installation Type: Pull-out
• Cord Length (m): 1.3
• Air Outlet (mm): 150
• Voltage (V): 220-240
• Required Fuse (A): N/A

• Energy Rating: C
• Grease Filter Efficiency Rating: D
• Annual Energy Consumption (kWh): 56.6
• Fluid Dynamic Efficiency Rating: D
• Lighting Efficiency Rating: E

• Product Number (PNC): 942 022 688
• Main Colour: Grey
• Control Type: Mechanical push buttons
• Lamp Type: LED bulb
• Bar Code: 7332543832286
• Charcoal Filter: 2;Included
• Charcoal Filter Type: ECFB03ST
• Long Life Filter Type: No
• Super Performing Filter Type: NO

Datasheet Downloads

• Datasheet
