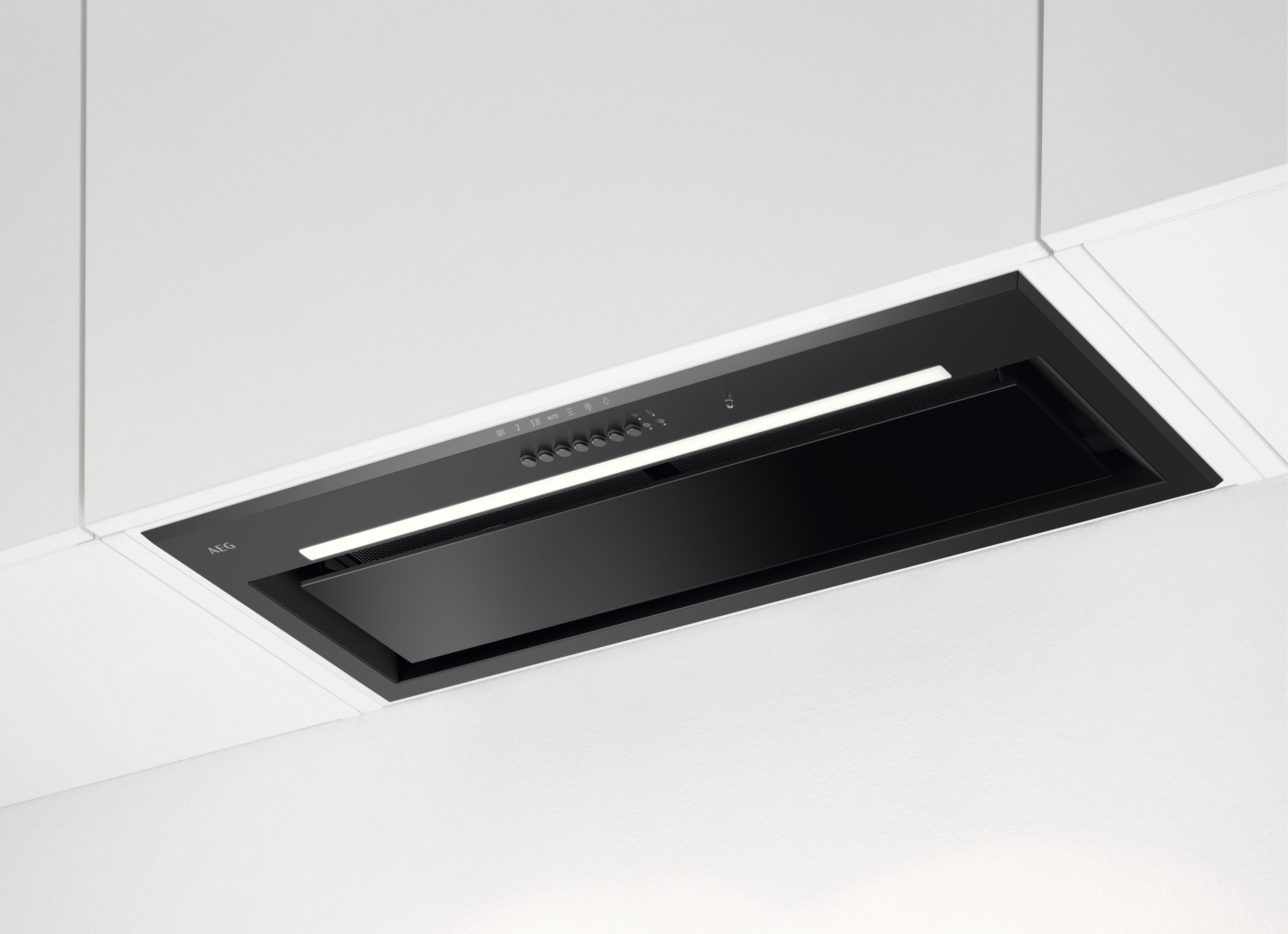

AEG GDG969AB 90cm New Canopy

• Control type: Push buttons with 3+Intensive; Breeze function; SilenceTech Range speeds.
• Aluminium grease filters: The metal filter captures grease, reducing odours, purifying the air, and enhancing performance. It's dishwasher-safe and never needs replacing.
• Charcoal filter: This charcoal filter is used in recirculation mode to remove cooking smells. Needs replacing periodically.
• Extraction mode: A ducting kit is attached to the hood to extract cooking vapours externally, keeping the kitchen free from odours.
• Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.
• Hob2Hood®: Allows you to control the cooker hood via your hob.
• Inverter motor
• Grease filter indicator.
• Charcoal filter indicator.
• Grease filter type and number: Black Aluminium mesh, 2

• Number of Speed Settings: 3+Intensive; Breeze function; SilenceTech Range
• Ducted Extraction Rate - Min/Max/Intensive (m³/h): 210/400/710
• Ducted Noise Level - Min/Max/Intensive (dB): 41/54/67
• Light Temperature (k): 2700-4000-5000
• Number of Lights: 1
• Hob2Hood Connection: Yes
• Min Recirculated Extraction Rate (m³/h): 140
• Max Recirculated Extraction Rate (m³/h): 280
• Intensive Recirculated Extraction Rate (m³/h): 385
• Min Recirculated Noise Level (dB): 51
• Max Recirculated Noise Level (dB): 67
• Number of Grease Filters: 2
• Grease Filter Type: Black Aluminium mesh

• Minimum Distance from Electric Hob (cm): 50
• Minimum Distance from Gas Hob (cm): 65
• Size (cm): 80
• Extraction Type - Recirculation: Yes
• Extraction Type - Ducted: Yes
• Net Weight (Kg): 13.3
• Gross Weight (Kg): 17.8
• Dimensions (mm) (HxWxD): 436x772x300
• Installation Type: Group
• Cord Length (m): 1.4
• Air Outlet (mm): 150
• Voltage (V): 220-240
• Required Fuse (A): N/A

• Energy Rating: A++
• Grease Filter Efficiency Rating: B
• Annual Energy Consumption (kWh): 27.8
• Fluid Dynamic Efficiency Rating: A
• Lighting Efficiency Rating: A

• Product Number (PNC): 942 022 760
• Main Colour: Black/Black
• Control Type: Electronic push buttons
• Lamp Type: AuroraTech; Perfect Ilumination; Led Stripe
• Bar Code: 7333394048758
• Charcoal Filter: Included
• Charcoal Filter Type: MCFB82ST
• Long Life Filter Type: MCFB83PL
• Super Performing Filter Type: MCFB75PR

Datasheet Downloads

• Datasheet
